Features:
Meet IEC62133 / un38 3 certification
Standard SMBus v1 1 interface
Integrated LED power status (SOC) indicator
Using Panasonic cell, it has the highest energy density and stability in the market
Meet JEITA charging optimization rules
Comprehensive safety protection functions, such as overcharge, over discharge, over-current, over temperature, short circuit, etc
With balance function, it can effectively improve the battery life
Ti accurate power calculation
Application:
It is suitable for portable electronic equipment, industrial and medical fields.
概述 | |
出廠容量 | 20%~30% |
符合的認證規範 | IEC62133 / UN38.3 / RoHS |
運行溫度 | 0°C~45°C (充電) -20°C~60°C (放電) |
存儲溫度 | -20°C~50°C（最大） -20°C~25°C（推薦） |
電性能 | |
額定電壓 | 7.2V |
額定容量 | 3.3Ah |
內阻 | ＜200mΩ@1kHz at 25℃ |
最大充電電流 | 1.65A |
最大充電電壓 | 8.4V |
最大放電電流 | 4.0A |
循環壽命 | 300次循環≥80%額定容量 （測試標準：CC/CV充電：0.66A/8.4V；CC放電：0.66A至5.0V@25℃） |
尺寸規格 | |
長 | 84.5mm ± 0.3mm |
寬 | 42.0mm ± 0.3mm |
厚 | 22.4mm ± 0.3mm |
重量 | <150g |

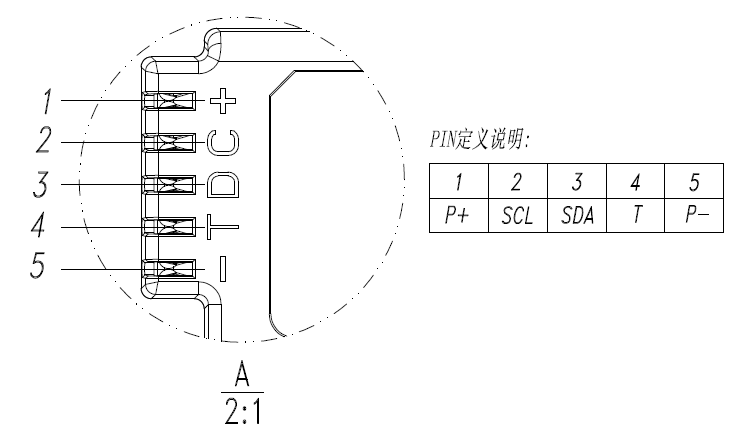

接口 |
|
保護參數 | |
過充檢測電壓 | 4.25V±0.025V |
過放檢測電壓 | 2.50V±0.080V |
過充檢測電流 | 2.00A±0.100A |
過放檢測電流 | 4.25A±0.100A |
